Features:
1. 1.85um small pixel. 2. Large depth of field design. 3. Ultra-low optical distortion. 4. TTL < 20mm for miniaturized structure. 5. Adapt various smart cameras.
型號
Model

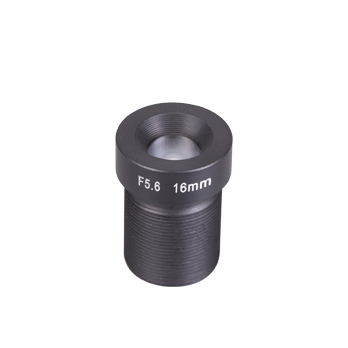

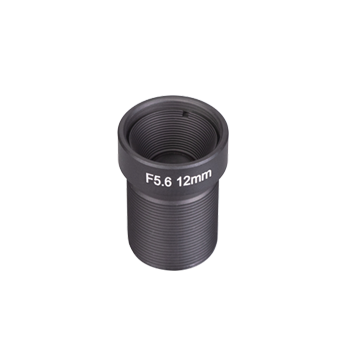

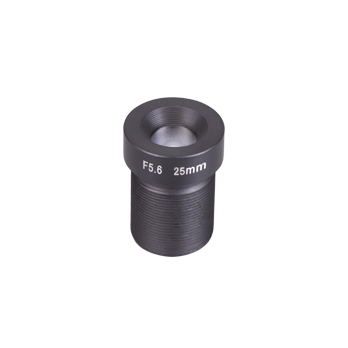

17PB1256 17PB1656 17PB2556 焦距(mm)
Focal Length
12mm 16mm 25mm 像面尺寸(φ)
Image Size
φ9.8 φ9.8 φ9.8 光圈范圍(F數)
F-Number
F5.6 F5.6 F5.6 最近工作距離(mm)
Min Working Distance60mm 50mm 100mm 控制
Control
光圈 Iris 固定 Fixed 固定 Fixed 固定 Fixed 聚焦 Focus 螺紋聚焦 Thread Focus 螺紋聚焦 Thread Focus 螺紋聚焦 Thread Focus 最近物距視場范圍(mm)
Minimum Object Distance FOV
-17.61 x -11.74 -10.16 x -6.78 -10.80 x -7.20 視場角(°) Angle of View
1/1.7" 33.16 x 22.44 x 40.28 20.36x 13.64x30.22 11.94x 7.98 x18.96 1/2" 28.92 x21.90 x 36.58 17.68x13.30x27.36 10.38x7.78 x 17.14 分辨率
Resolution
12MP 12MP 12MP 最近物距至無窮遠******畸變值%
Max TV Distortion-0.51 -0.29 0.13 基準工作距離TV畸變(200mm-400mm)%
Optimal TV Distortion
-0.28 -0.20 0.12 接口
Mount
M12*0.5 M12*0.5 M12*0.5 鏡頭尺寸(mm)
Dimension
φ14*18.9 φ14*18.8 φ14*19.5 重量(g)
Weight
4.1g 4.4g 4.6g 溫度范圍(°)
Operating Temperature
-10~+50℃ -10~+50℃ -10~+50℃ -
-
