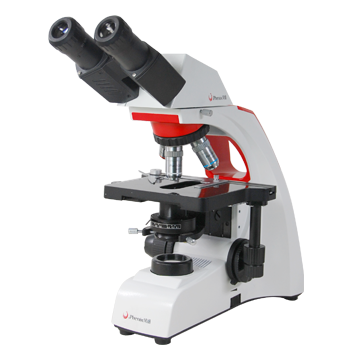

BMC300 series biological microscope

share:
  • Description
  • Features
  • Download
  • BMC300 series laboratory biological microscope, with excellent optical system, clearer imaging, equipped with large field of view,high eye point,diopter adjustable and no distortion eyepiece, Flat field, high brightness, high contrast and high definition objective lens, high power 3W LED cold light source, precise stepless dimming, no screen flicker, no eye injury. It can be used for the morphological analysis of urine and body fluids, and can also be used for teaching research and scientific research analysis of biology and bacteriology in colleges and universities and laboratories.

    Function features:

    Phenix infinity achromatic correction optical system, the focal length is 45mm, with open field observation function

    Flat field, high brightness, high contrast, high definition objective lens

    Large field of vision, high eye point, adjustable vision, no distortion eyepiece

    High power 3W LED cool light source, precision stepless dimming, no screen flash, will not hurting eyes

    High power LED universal illumination, can observe solid specimen and has auxiliary lighting function

    Anti-mildew coating inside the microscope

    Product details:

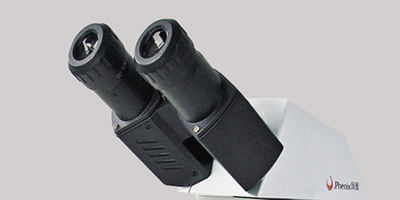

    Adjustable binocular tube

    Adjustable binocular tube, 30° tilt, interpupillary distance 48-76mm

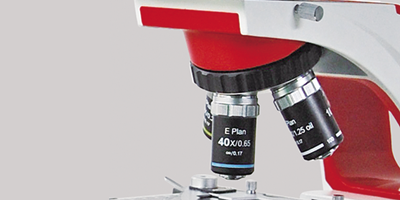

    Achromatic objective lens

    4X, 10X, 40X (spring), 100X (spring oil)




    Infinity plan achromatic objective lens

    4X, 10X, 40X (spring), 100X (spring oil)

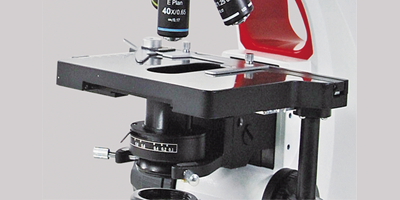

    Double-layer mechanical stage, with double slice clips

    Size 160X142mm, moving range 76X52mm




    Lighting system

    Upper light source: 1W LED cold light source with lens (non-standard, optional)

    Bottom light source: LED cold light source, 3W, precise stepless dimming, no flicker

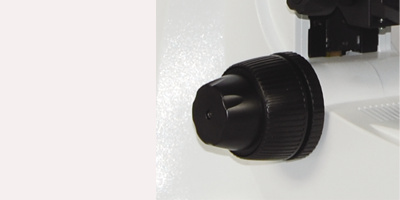

    Coaxial coarse and fine movement, elasticity adjustable

    Coarse movement stroke: 22mm, fine movement accuracy 0.001mm




  • BMC300 Series Biological Microscope Main Parameters


    Model
    BMC300

    Microscope

    configuration

    BMC302-A

    BMC303-A

    BMC302-PL

    BMC303-PL

    BMC302-IPL

    BMC303-IPL

    Total

    Magnification

    40X-1000X

    viewing tube

    Compensation

    binocular,

    30°inclined,

    360° rotatable,

    interpupillary

    distance: 48-76mm

    Compensation

    trinocular,

    30°inclined,

    360° rotatable,

    interpupillary

    distance: 48-76mm

    Compensation

    binocular,

    30°inclined,

    360° rotatable,

    interpupillary

    distance: 48-76mm

    Compensation

    trinocular,

    30°inclined,

    360° rotatable,

    interpupillary

    distance: 48-76mm

    Infinity

    compensation

    binocular,

    30°inclined,

    360° rotatable,

    interpupillary

    distance: 48-76mm

    Infinity

    compensation

    trinocular,

    30°inclined,

    360° rotatable,

    interpupillary

    distance: 48-76mm

    Eyepiece

    Wide field WF10X/20mm, WF16X/15mm (Optional), with teaching pointer (choose accessories)

    Objective


    195N Achromatic objective

    Plan Achromatic objective

    Infinity Plan Achromatic objective

    4X

    PLAN 4X

    IPL PLAN 4X

    10X

    PLAN 10X

    IPL PLAN 10X

    40X

    PLAN 40X

    IPL PLAN 40X

    100X

    PLAN 100X

    IPL PLAN 100X

    Nosepiece

    Inner clined quadruble nosepiece, ball bearing inner locating

    Stage

    Double-layer mechanical sliding stage, area: 160mm×142mm, moving range: 76mm×52mm, with two double slide clips,

    with limit device and limit adjustable,with anti-extrusion slice function

    Focusing

    system

    Coaxial coarse and fine focusing knob, coarse focusing range 25mm, fine focusing graduation: 0.001mm,

    elasticity adjustable, upper limit adjustable, random positioning

    Condenser

    Abbe condenser N.A=1.25, lift up and down, center adjustable, iris diaphragm

    Upper light

    1W LED cold light source with lens (Non-standard, optional)

    Bottom light

    LED cold light source, 3W, precision stepless dimming, no flicker (Standard), life span ≥50000h

    Dimming

    system

    Digital circuit, precise stepless dimming, no screen flicker

    Power

    supply

    External switch power supply, input AC90-240V

    Package

    Foam+Carton

    Camera

    interface

    C type interface 0.5X

    C type interface 0.65X

    C type interface 1X

    With mirror paper (choose accessories)
    NMPA certification and CE certification
