Stock code：600071
-
12FA1224-25MP
-
12FA1624-25MP
-
12FA2524-25MP
-
12FA3524-25MP
-
12FA5024-25MP

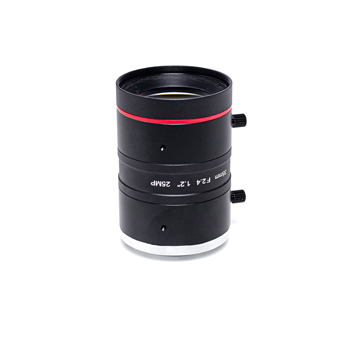

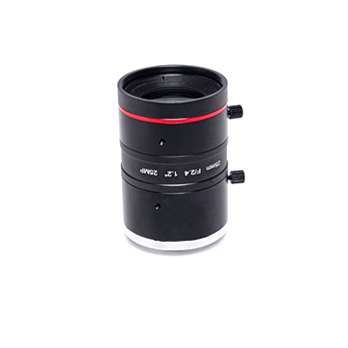

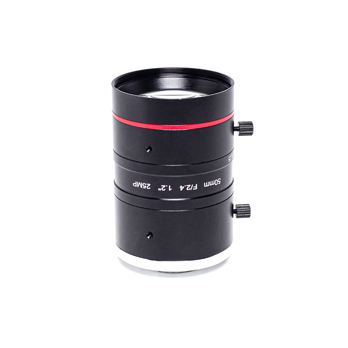

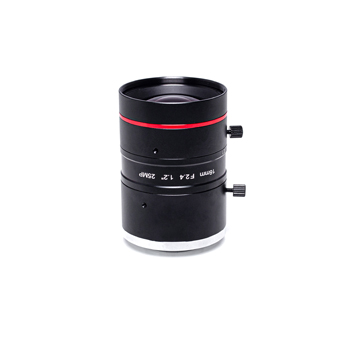

25MP 1.2" Low-distortion Industrial Lens
- Description
- Features
- Download
-
Compatible with the latest 1.2" camera
Backward compatible with 1" and 1.1" camera
25MP ultra high resolution perfectly fits the requirement of high-end machine vision
型號
Model
12FA1224-25MP
12FA1624-25MP
12FA2524-25MP
12FA3524-25MP
12FA5024-25MP
焦距(mm)
Focal Length
12mm
16mm
25mm
35mm
50mm
像面尺寸(φ)
Image Size
φ19.3
φ19.3
φ19.3
φ19.3
φ19.3
像素尺寸(μm)
Pixel Size
2.74μm
2.74μm
2.74μm
2.74μm
2.74μm
光圈范圍(F數(shù))
F-Number
F2.4-16
F2.4-16
F2.4-16
F2.4-16
F2.4-16
工作距離(mm)
Working Distance
100mm-∞
100mm-∞
150mm-∞
150mm-∞
250mm-∞
控制
Control
光圈
Iris
手動 Manual
手動 Manual
手動 Manual
手動 Manual
手動 Manual
聚焦
Focus
手動 Manual
手動 Manual
手動 Manual
手動 Manual
手動 Manual
最近物距視場范圍(mm)
Minimum Object Distance
FOV
-149.68 x -129.48
-105.17 x -90.98
-88.89 x -76.71
-63.65 x -55.06
-74.71 x -64.63
視場角(°)
Angle of View
1.2"
62.33x55.33x76.12
48.83x42.86x61.36
31.42x27.32x41.19
22.51x19.53x29.33
15.66x13.57x20.50
1.1"
54.5x54.5x71.6
42.12x42.12x57.24
27.58x27.58x38.32
19.1x19.1x26.76
13.28x13.28x18.76
1.0"
56.2x43.6x71.08
43.46x33.24x53.04
28.52x21.58x35.3
19.76x14.9x24.54
13.76x10.34x17.22
分辨率
Resolution
25MP
25MP
25MP
25MP
25MP
TV畸變
(最近物距至無窮遠(yuǎn)******畸變值)
Max TV Distortion
0.870
0.073
-0.106
-0.072
0.062
基準(zhǔn)工作距離TV畸變
(200mm-400mm)%
Optimal TV Distortion
0.390
0.070
-0.040
0.015
0.011
接口
Mount
C
C
C
C
C
濾鏡尺寸(mm)
Filter Size
M40.5*0.5
M37*0.5
M40.5*0.5
M40.5*0.5
鏡頭尺寸(mm)
Dimension
φ50*66.96
φ42.5*59.76
φ40*58.44
φ42*59.32
φ42*61.16
重量(g)
Weight
218.5
189.5
161.7
174
179
溫度范圍(°)
Operating Temperature
-10~+50℃
-10~+50℃
-10~+50℃
-10~+50℃
-10~+50℃
-
-
